Infineon
XC2288H200F100LABKXUMA1
RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQFP144, 0.0197 INCH PITCH, GREEN, PLASTIC, LQFP-144
Frequency100MHz
PackageLQFP
Quick Jump:
Technical Specifications
Infineon XC2288H200F100LABKXUMA1 technical specifications.
General
Package/Case
LQFP
Data Bus Width
16b
Halogen Free
Halogen Free
Interface
I2C, SPI, CAN, UART, USART, LIN, EBI/EMI, I2S
Max Frequency
100MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Memory Size
1.6MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
118
Number of Programmable I/O
118
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
500
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA
RAM Size
112KB
RoHS Compliant
Yes
Series
XC22xxH
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Infineon XC2288H200F100LABKXUMA1 Datasheet
Download the complete datasheet for Infineon XC2288H200F100LABKXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

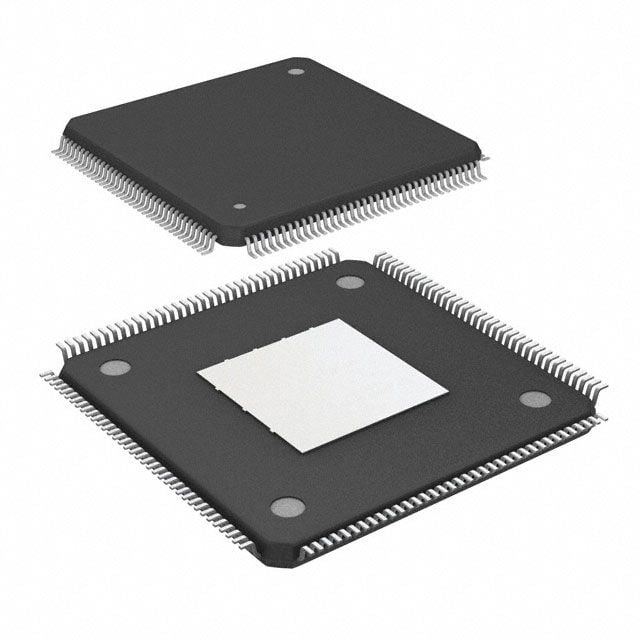

Product Images
