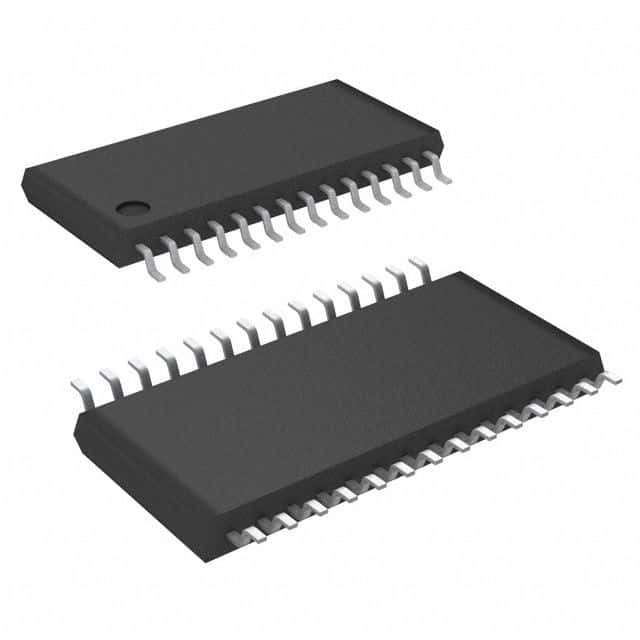

8-Bit Microcontroller featuring an 8051 core architecture, operating at up to 24MHz with a maximum frequency of 25.6MHz. This FLASH memory microcontroller offers 8KB of program memory and 512B of RAM, supporting I2C, UART, and USART interfaces. It includes 25 programmable I/Os, 6 PWM channels, and 3 timers/counters, with an internal oscillator. Packaged in a 28-pin TSSOP, this RoHS compliant component operates from 2.3V to 2.7V, with a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon XC836MT2FRIABFXUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon XC836MT2FRIABFXUMA1 technical specifications.
| Package/Case | TSSOP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Halogen Free | Halogen Free |
| Interface | I2C, UART, USART |
| Max Frequency | 25.6MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.7V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.3V |
| Number of I/Os | 25 |
| Number of Programmable I/O | 25 |
| Number of PWM Channels | 6 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | XC8xx |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for Infineon XC836MT2FRIABFXUMA1 to view detailed technical specifications.
