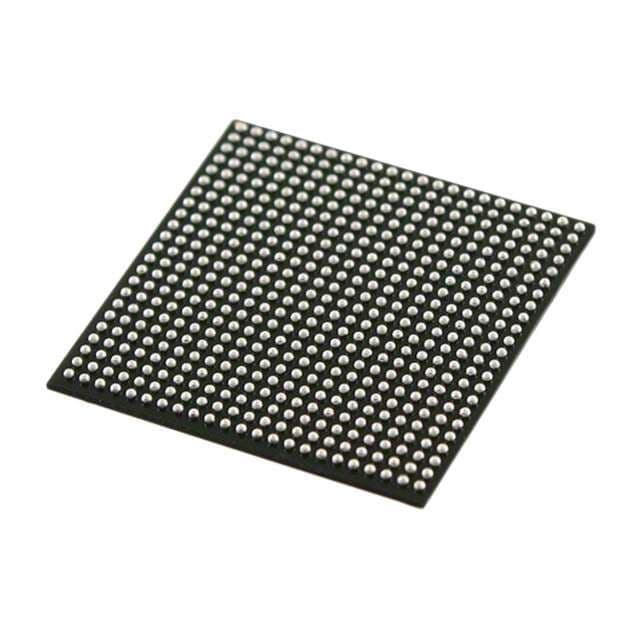

Intel
5CGXBC3B6F23C7N
Field Programmable Gate Array, 31500-Cell, CMOS, PBGA484, ROHS COMPLIANT, FBGA-484
Frequency800MHz
PackageFBGA
Quick Jump:
Technical Specifications
Intel 5CGXBC3B6F23C7N technical specifications.
General
Package/Case
FBGA
Data Rate
3.125Gbps
Lead Free
Lead Free
Max Frequency
800MHz
Max Operating Temperature
85°C
Memory Size
1349Kb
Min Operating Temperature
0°C
Number of GPIO
208
Number of I/Os
208
Number of Logic Blocks (LABs)
11900
Number of Logic Elements/Cells
31500
Number of Transceivers
3
Operating Supply Voltage
1.13V
Package Quantity
60
Packaging
Tray
RAM Size
1381376b
RoHS Compliant
Yes
Series
Cyclone® V GX
Speed Grade
7
Compliance
RoHS
Compliant
