Intel
5CSTFD6D5F31I7N
Field Programmable Gate Array, 110000-Cell, CMOS, PBGA896, ROHS COMPLIANT, FBGA-896
Frequency800MHz
PackageFBGA
Quick Jump:
Technical Specifications
Intel 5CSTFD6D5F31I7N technical specifications.
General
Package/Case
FBGA
Core Architecture
ARM
Data Rate
5Gbps
Interface
I2C, SPI, USB, Ethernet, MMC, SDIO, SD, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
800MHz
Max Operating Temperature
100°C
Memory Size
6191Kb
Min Operating Temperature
-40°C
Number of I/Os
288
Number of Logic Blocks (LABs)
41509
Number of Logic Elements/Cells
110000
Number of Transceivers
9
Operating Supply Voltage
1.13V
Package Quantity
27
Packaging
Tray
Peripherals
POR, WDT, DMA
RAM Size
64KB
RoHS Compliant
Yes
Series
Cyclone® V ST
Speed Grade
7
Compliance
RoHS
Compliant
Datasheet
Intel 5CSTFD6D5F31I7N Datasheet
Download the complete datasheet for Intel 5CSTFD6D5F31I7N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

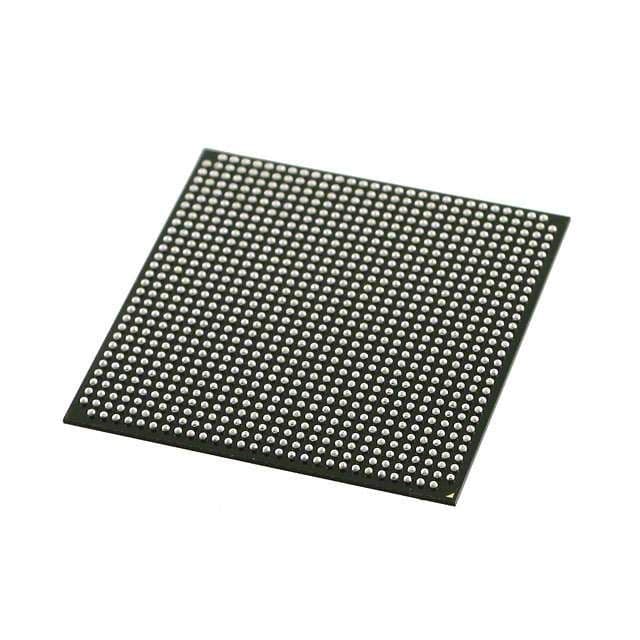

Product Images
