INTEL

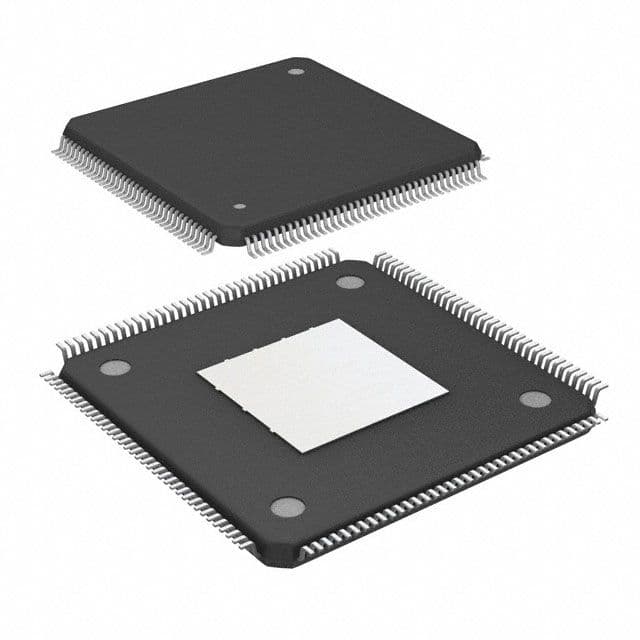

EP3C10E144C8N

FPGA 10320 Cells 402MHz 1.2V 144-Pin EQFP Tray

Intel

EP3C10E144C8N

Name: EP3C10E144C8N Intel
Brand: Intel
SKU: EP3C10E144C8N

FPGA 10320 Cells 402MHz 1.2V 144-Pin EQFP Tray

Field Programmable Gate Array (FPGA) with 10320 logic elements and 645 LABs, operating at up to 402MHz. Features 94 I/Os, 423936 bits of RAM, and a 1.2V operating supply voltage. This surface-mount device utilizes 65nm technology and is housed in a 144-pin EQFP package, with a temperature range of 0°C to 85°C. RoHS compliant and lead-free.

Frequency402MHz

PackageQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP3C10E144C8N technical specifications.

General

Package/Case	QFP
Frequency	402MHz
Height	1.4mm
Lead Free	Lead Free
Length	20mm
Max Frequency	315MHz
Max Operating Temperature	85°C
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Memory Size	423936b
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	94
Number of Logic Blocks (LABs)	645
Number of Logic Elements/Cells	10320
Operating Supply Voltage	1.2V
Packaging	Tray
Radiation Hardening	No
RAM Size	423936b
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Cyclone® III
Speed Grade	8
Termination	SMD/SMT
Weight	0.193407oz
Width	20mm
