INTEL

EP4CE30F23C8N

FPGA Cyclone IV E, 28848 Cells, 200MHz, 328 I/Os, 1.2V, FBGA

Intel

EP4CE30F23C8N

Name: EP4CE30F23C8N Intel
Brand: Intel
SKU: EP4CE30F23C8N

FPGA Cyclone IV E, 28848 Cells, 200MHz, 328 I/Os, 1.2V, FBGA

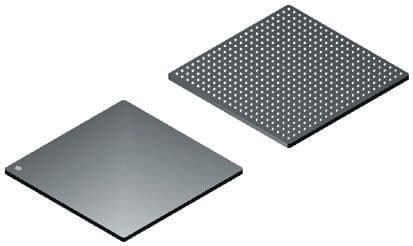

Field Programmable Gate Array (FPGA) with 28,848 logic elements/cells and 1803 Logic Array Blocks (LABs). Features 594Kb memory size and 608,256 bits of RAM. Operates at a 1.2V supply voltage with a range of 1.15V to 1.25V, supporting a maximum frequency of 200MHz. This surface-mount component is housed in a 23mm x 23mm x 2mm FBGA package with 328 I/Os. It operates between 0°C and 85°C and is RoHS compliant.

Frequency200MHz

PackageFBGA

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP4CE30F23C8N technical specifications.

General

Package/Case	FBGA
Height	2mm
Length	23mm
Max Frequency	200MHz
Max Operating Temperature	85°C
Memory Size	594Kb
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	328
Number of Logic Blocks (LABs)	1803
Number of Logic Elements/Cells	28848
Number of Macrocells	28848
Number of Registers	28848
Operating Supply Voltage	1.2V
Package Quantity	60
Packaging	Tray
Radiation Hardening	No
RAM Size	608256b
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Cyclone IV E
Width	23mm
