INTEL

EP4CE6E22C8N

FPGA, 6272 Cells, 392 LABs, 200MHz, 1.2V, QFP, 91 I/O

Intel

EP4CE6E22C8N

Name: EP4CE6E22C8N Intel
Brand: Intel
SKU: EP4CE6E22C8N

FPGA, 6272 Cells, 392 LABs, 200MHz, 1.2V, QFP, 91 I/O

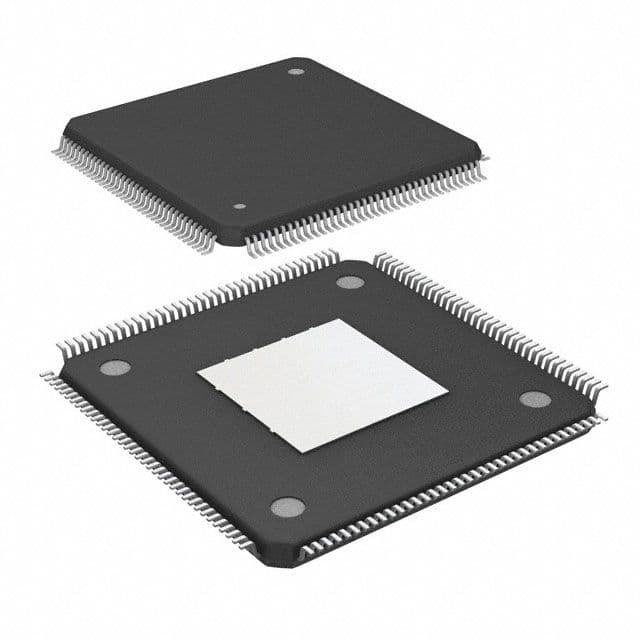

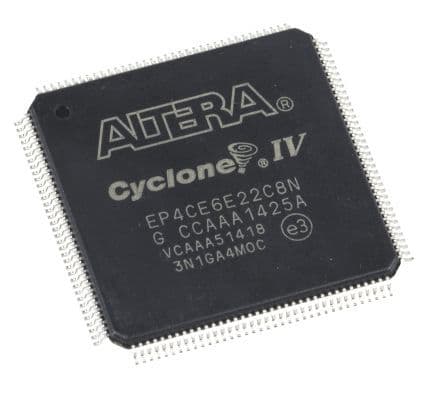

Field Programmable Gate Array (FPGA) with 6272 logic elements/cells and 392 logic blocks (LABs). Features 270Kb memory size and 276480 bits of RAM. Operates at a maximum frequency of 200MHz with a supply voltage range of 1.15V to 1.25V. Packaged in a 144-pin PQFP (EQFP-144) for surface mounting, with dimensions of 20mm x 20mm x 1.6mm. RoHS compliant and suitable for operation between 0°C and 85°C.

Frequency200MHz

PackageQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP4CE6E22C8N technical specifications.

General

Package/Case	QFP
Height	1.6mm
Length	20mm
Max Frequency	200MHz
Max Operating Temperature	85°C
Memory Size	270Kb
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	91
Number of Logic Blocks (LABs)	392
Number of Logic Elements/Cells	6272
Number of Macrocells	6272
Operating Supply Voltage	1.2V
Package Quantity	60
Packaging	Tray
Radiation Hardening	No
RAM Size	276480b
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Cyclone IV E
Speed Grade	8
Width	20mm
