CMOS Flash Programmable Logic Device (PLD) featuring 440 macrocells and 570 logic elements. Operates with a supply voltage range of 2.375V to 3.6V, typically 3.3V, and a maximum operating temperature of 100°C. Offers a propagation delay of 8.7ns, 116 programmable I/Os, and 57 logic array blocks (LABs). Packaged in a 144-pin TQFP (Thin Quad Flat Pack) for surface mounting.
Frequency1.8797GHz
PackageTQFP
Current55mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM570T144I5 technical specifications.
General
| Package/Case | TQFP |
| Frequency | 1.8797GHz |
| Lead Free | Contains Lead |
| Max Frequency | 304MHz |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8192b |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of I/Os | 116 |
| Number of Logic Blocks (LABs) | 57 |
| Number of Logic Elements/Cells | 570 |
| Number of Macro Cells | 440 |
| Number of Macrocells | 440 |
| Number of Programmable I/O | 116 |
| Operating Supply Current | 55mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| Propagation Delay | 8.7ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | MAX® II |
| Speed Grade | 5 |
| Supply Current | 55mA |
| Turn-On Delay Time | 8.7ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Intel EPM570T144I5 Datasheet
Download the complete datasheet for Intel EPM570T144I5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

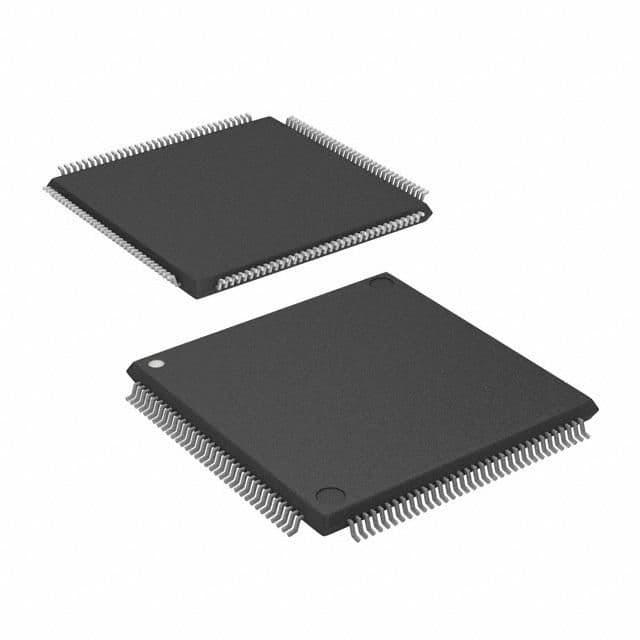

Product Images
