International Rectifier
IRFHM4231TRPBF
INTERNATIONAL RECTIFIER IRFHM4231TRPBF MOSFET, N CHANNEL, 25V, 40A, PQFN-8
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IRFHM4231TRPBF technical specifications.
General
| Continuous Drain Current (ID) | 40A |
| Drain to Source Voltage (Vdss) | 25V |
| Fall Time | 5.9ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.9mm |
| Input Capacitance | 1.27nF |
| Length | 3.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.7W |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rds On Max | 3.4mR |
| Reach SVHC Compliant | No |
| Series | HEXFET® |
| Threshold Voltage | 1.6V |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 8.7ns |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRFHM4231TRPBF Datasheet
Download the complete datasheet for International Rectifier IRFHM4231TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

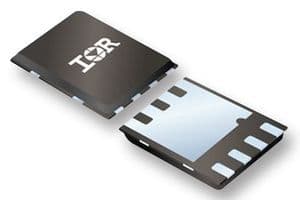

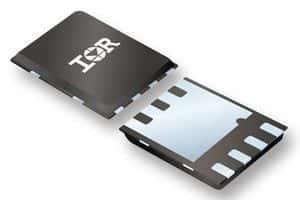

Product Images
