PackageTO-247AC
Current Rating53A
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier IRFP044NPBF technical specifications.
General
| Package/Case | TO-247AC |
| Continuous Drain Current (ID) | 53A |
| Current Rating | 53A |
| Drain to Source Voltage (Vdss) | 55V |
| Dual Supply Voltage | 55V |
| Fall Time | 52ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 20.3mm |
| Input Capacitance | 1.5nF |
| Lead Free | Lead Free |
| Lead Pitch | 5.45mm |
| Length | 15.9mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 120W |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Rds On Max | 20mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HEXFET® |
| Turn-Off Delay Time | 43ns |
| Turn-On Delay Time | 12ns |
| DC Rated Voltage | 55V |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRFP044NPBF Datasheet
Download the complete datasheet for International Rectifier IRFP044NPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

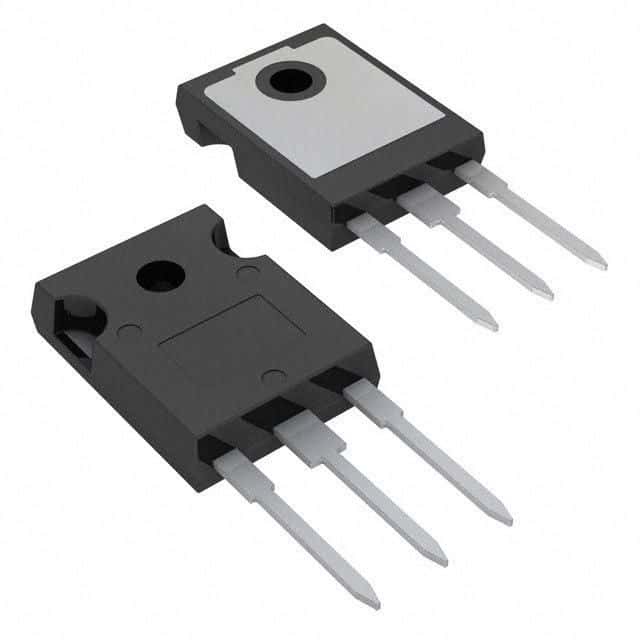

Product Images
