PackageDPAK
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IRLR3114ZPBF technical specifications.
General
Package/Case
DPAK
Continuous Drain Current (ID)
130A
Drain to Source Voltage (Vdss)
40V
Drain-source On Resistance-Max
4.9MR
Gate to Source Voltage (Vgs)
16V
Height
2.39mm
Input Capacitance
3.81nF
Lead Free
Lead Free
Length
6.73mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
140W
Mount
Surface Mount
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
2.5V
Turn-Off Delay Time
33ns
Turn-On Delay Time
25ns
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRLR3114ZPBF Datasheet
Download the complete datasheet for International Rectifier IRLR3114ZPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

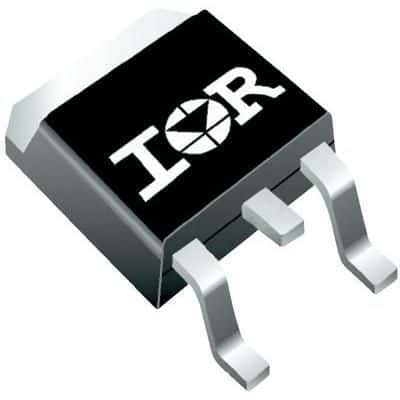

Product Images
