PackageDPAK
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IRLR8256PBF technical specifications.
General
| Package/Case | DPAK |
| Continuous Drain Current (ID) | 81A |
| Drain to Source Voltage (Vdss) | 25V |
| Drain-source On Resistance-Max | 5.7MR |
| Dual Supply Voltage | 25V |
| Fall Time | 8.5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 2.39mm |
| Input Capacitance | 1.47nF |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63W |
| Mount | Surface Mount |
| Nominal Vgs | 1.8V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HEXFET® Series |
| Termination | SMD/SMT |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 9.7ns |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRLR8256PBF Datasheet
Download the complete datasheet for International Rectifier IRLR8256PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

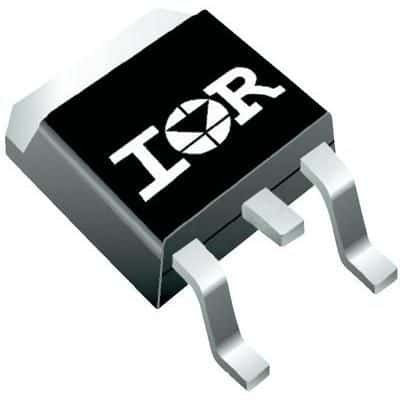

Product Images
