International Rectifier
PVG612AS-TPBF
Transistor Output SSR, 1-Channel, 4000V Isolation, LEAD FREE, SURFACE MOUNT, DIP-6
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier PVG612AS-TPBF technical specifications.
General
| Package/Case | SMD/SMT |
| Input Current | 25mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 2A |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier PVG612AS-TPBF Datasheet
Download the complete datasheet for International Rectifier PVG612AS-TPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

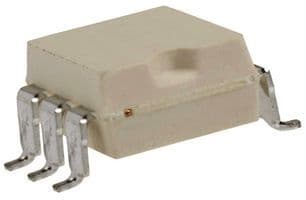

Product Images
