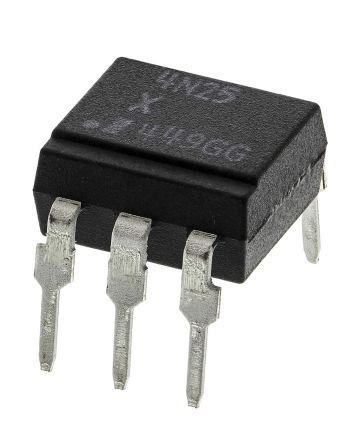

The 4N25 is a single optocoupler that combines an infrared emitting diode with an NPN silicon phototransistor output in a standard 6-pin dual in-line plastic package. It provides 5000 VRMS isolation, operates from -55°C to 100°C, and is specified for a maximum forward input current of 60 mA. The output stage is rated for 50 mA collector current with 70 V collector-emitter breakdown voltage. At IF = 10 mA and VCE = 5 V, the 4N25 current transfer ratio is specified from 40% to 80%, with a 150 kHz cutoff frequency and typical 2 µs rise and fall times. The device is RoHS compliant and is listed with UL approval under model GG.
Sign in to ask questions about the Isocom 4N25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Isocom 4N25 technical specifications.
| Package/Case | PDIP |
| Fall Time | 2us |
| Isolation Voltage | 5.3kV |
| Max Input Current | 60mA |
| Mount | Through Hole |
| Number of Channels | 1 |
| RoHS Compliant | Yes |
| RoHS | Compliant |
