Technical Specifications
ITT CA3108E28-15SBF80 technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green |
| Contact Finish - Mating | SILVER |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Gender | Female |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 35 |
| Number of Positions | 35 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Series | MIL-DTL-5015, CA-B |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Termination | Crimp |
| Voltage Rating | 50V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
ITT CA3108E28-15SBF80 Datasheet
Download the complete datasheet for ITT CA3108E28-15SBF80 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

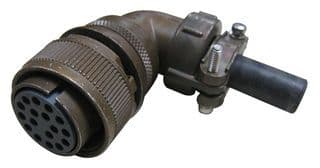

Product Images
