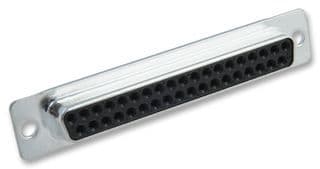

This 37-position 2-row receptacle connector features a steel body with a black color, copper alloy contacts plated with gold, and a glass dielectric material. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The connector is rated for 5A and is designed for panel mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT DCU37SA197F0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Steel |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 5A |
| Dielectric Material | Glass |
| Gender | Receptacle |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Contacts | 37 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | D*U |
| RoHS | Compliant |
Download the complete datasheet for ITT DCU37SA197F0 to view detailed technical specifications.
