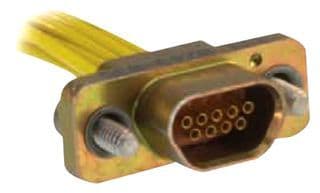

9-position, 2-row straight male Micro-D connector with solder termination. Features copper alloy contacts with gold plating for signal applications, rated for 3A current. Constructed with a polymer dielectric and a shielded metal shell, this panel-mount connector operates within a -55°C to 125°C temperature range. Dimensions include a 1.27mm pitch, 19.94mm length, 7.82mm width, and 10.57mm depth. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT MDM-9PSB-A174 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ITT MDM-9PSB-A174 technical specifications.
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 3A |
| Depth | 10.57mm |
| Dielectric Material | Polymer |
| Features | Shielded |
| Gender | Male |
| Length | 19.94mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MDM |
| Shell Size | X |
| Termination | Solder |
| Width | 7.82mm |
| RoHS | Compliant |
