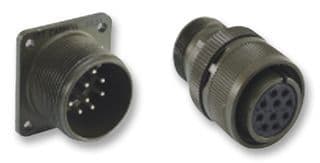

Environmentally resistant, IP67-rated circular connector featuring a straight plug design with 19 contacts. This MIL-DTL-26482 Series I compliant component offers a male gender, solder termination, and a copper alloy contact material with gold plating. Constructed with an aluminum body and cadmium plating, it operates within a temperature range of -55°C to 125°C and supports a current rating of 7.5A. Designed for free-hanging, cable mounting, this connector is suitable for demanding applications.
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
ITT MS3116E14-19S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 7.5A |
| Gender | Male |
| Length | 33.73mm |
| Max Current Rating | 7.5A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (DC) | 850.6kV |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 19 |
| Number of Ports | 1 |
| Number of Positions | 19 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate, Aluminium |
| Ratings | Environment Resistant, IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | Military, MIL-DTL-26482 Series I, KPT |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
ITT MS3116E14-19S Datasheet
Download the complete datasheet for ITT MS3116E14-19S to view detailed technical specifications.
