Technical Specifications
Ixys DSEP2X91-03A technical specifications.
General
Average Rectified Current
90A
Package/Case
SOT-227-4
Forward Current
90A
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
300V
Max Reverse Current
1mA
Max Reverse Voltage (DC)
300V
Max Surge Current
1kA
Mount
Chassis Mount, Screw
Package Quantity
10
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
1kA
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
40ns
Reverse Recovery Time-Max
30ns
Reverse Voltage
300V
RoHS Compliant
Yes
Series
HiPerFRED™
Compliance
RoHS
Compliant
Datasheet
Ixys DSEP2X91-03A Datasheet
Download the complete datasheet for Ixys DSEP2X91-03A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

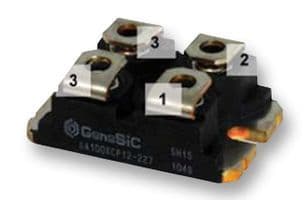

Product Images
