2-channel AC input-Darlington output optocoupler for general applications. Features a 30V collector-emitter voltage (VCEO) and 1V collector-emitter saturation voltage. Offers a high current transfer ratio of 1000% with a 100mA forward current. Surface mountable in an 8-pin SMD/SMT package, this RoHS compliant component operates from -40°C to 85°C with a maximum power dissipation of 800mW.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Ixys LDA210S technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
1V
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
1V
Current Transfer Ratio
1000%
Forward Current
100mA
Height
3.302mm
Input Type
AC
Lead Free
Lead Free
Length
9.652mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Output Voltage
30V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
150mW
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Series
LDA210
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Ixys LDA210S Datasheet
Download the complete datasheet for Ixys LDA210S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

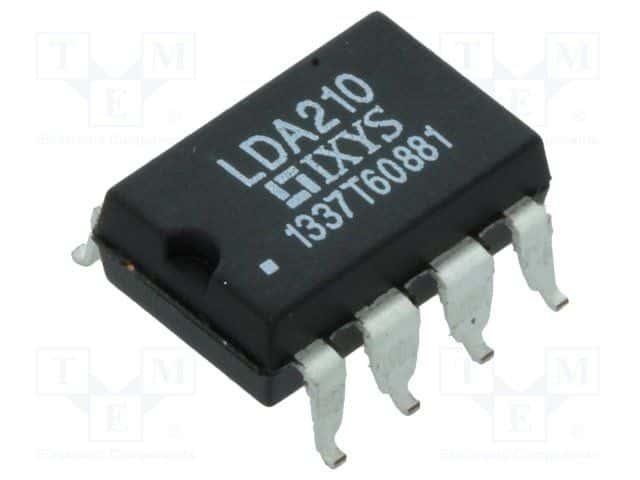

Product Images
