The MCC95-18IO1B thyristor from Ixys features a TO-240AA package and is designed for chassis mount applications with a screw terminal. It can handle a maximum operating temperature of 125°C and a minimum of -40°C. The device is lead-free and RoHS compliant. The thyristor has a hold current of 200mA and an RMS current rating of 180A. It is packaged in bulk quantities of six units.
PackageTO-240AA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Ixys MCC95-18IO1B technical specifications.
General
| Package/Case | TO-240AA |
| Hold Current | 200mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Package Quantity | 6 |
| Packaging | Bulk |
| Reverse Voltage | 1.8kV |
| RMS Current (Irms) | 180A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Ixys MCC95-18IO1B Datasheet
Download the complete datasheet for Ixys MCC95-18IO1B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

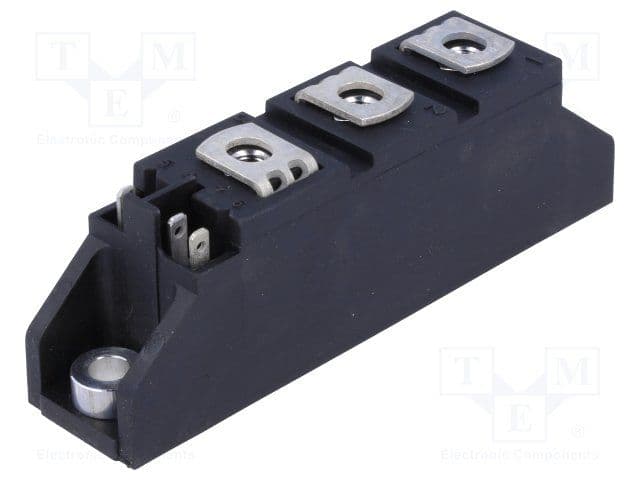

Product Images
