Technical Specifications
Ixys MMO90-16io6 technical specifications.
General
Repetitive Peak Reverse Voltage
1600V
Maximum Holding Current
100mA
Rated Average On-State Current
41A
Maximum Gate Peak Inverse Voltage
10V
Maximum Gate Trigger Current
100mA
Maximum Gate Trigger Voltage
1.5V
Peak On-State Voltage
1.43@80AV
Maximum Rate of Rise of Off-State Voltage
1000V/us
Maximum Rate of Rise of On-State Current
500A/us
Repetitive Peak Off-State Current
20mA
Operating Junction Temperature
-40 to 150°C
Repetitive Peak Forward Blocking Voltage
1600V
Surge Current Rating
860A
Min Operating Temperature
-40°C
Max Operating Temperature
150°C

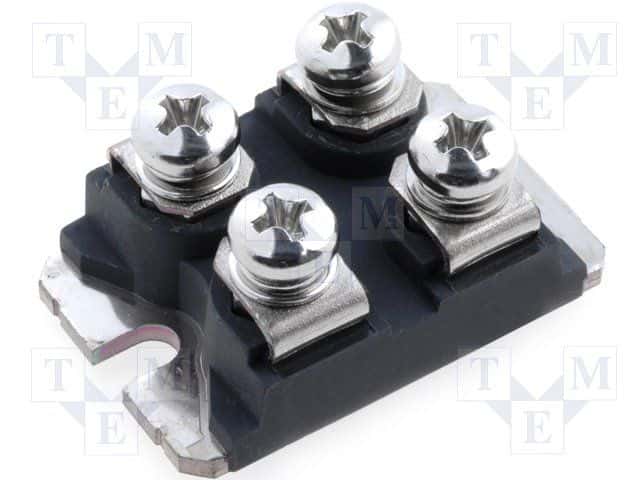

Package/Case
SOT-227B
Package Family Name
SOT
Pin Count
4
Standard Package Name
SOT
Compliance
RoHS
Yes
RoHS Version
2011/65/EU, 2015/863
