Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
JAE Electronics FA1004SA1-R8000 technical specifications.
General
| Actuator Color | Black |
| Actuator Material | Plastic |
| Contact Location | Opposite Side |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Mating Cycles | 20 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 4 |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| RoHS Compliant | Yes |
| Series | FA10 |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
JAE Electronics FA1004SA1-R8000 Datasheet
Download the complete datasheet for JAE Electronics FA1004SA1-R8000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

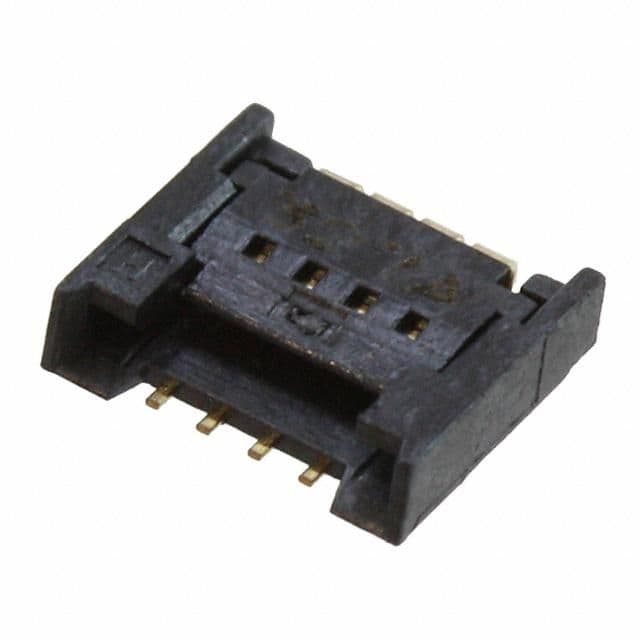

Product Images
