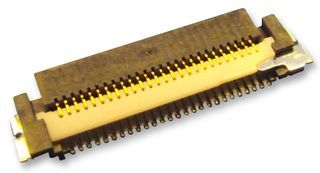

24-position, 0.5mm pitch FFC/FPC board connector with a right-angle, surface mount orientation. Features a hinged actuator in white Nylon, Glass, Polyamide for secure mating. Contacts are copper alloy with gold and tin plating, rated for 800mA and 50V. Operates within a -40°C to 85°C temperature range and offers 20 mating cycles. RoHS compliant with UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating800mA
MountingSurface Mount
Quick Jump:
Technical Specifications
JAE Electronics FA5S024HP1 technical specifications.
General
Actuator Color
White
Actuator Material
Nylon, Glass, Polyamide
Contact Material
Copper Alloy, Copper
Contact Plating
Gold, Tin
Current Rating
800mA
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Material
Resin
Mating Cycles
20
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Contacts
24
Number of Positions
24
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Pitch
0.5mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
FA5
Termination
Solder
Voltage Rating
50V
Compliance
RoHS
Compliant
