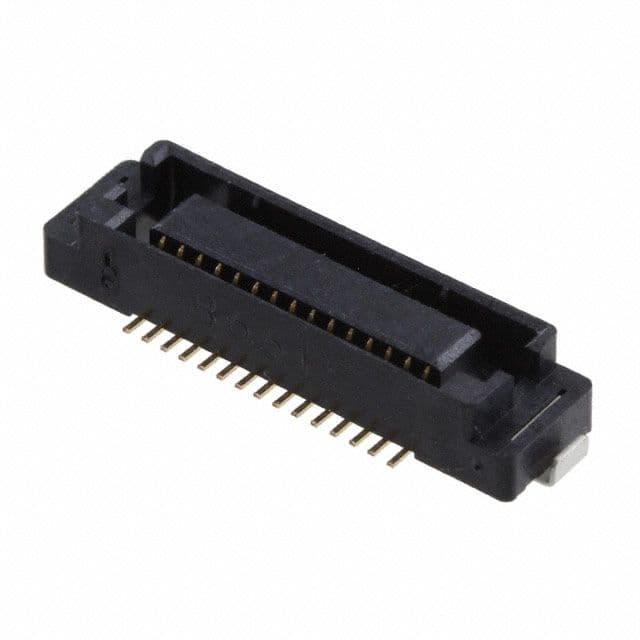

This 30-position 2-row surface mount connector features a copper alloy contact material with gold plating, a current rating of 500mA, and a voltage rating of 300V. It is constructed with a black housing and is compliant with RoHS regulations. The connector is available in a tray packaging format with a package quantity of one. It has a mated stacking height of 6mm and a stack height of 2mm, with a termination type of SMD/SMT.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JAE Electronics KX14-30K2DE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Lead Free | Lead Free |
| Mated Stacking Heights | 6mm |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 0.8mm |
| RoHS Compliant | Yes |
| Series | KX14 |
| Stack Height | 2mm |
| Termination | SMD/SMT |
| Voltage Rating | 300V |
| RoHS | Compliant |
