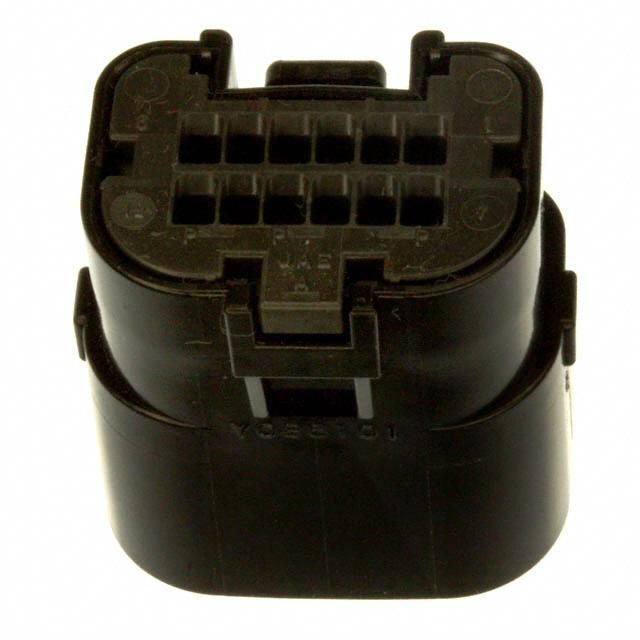

12-position, 2-row female socket housing for crimp termination, featuring a 2.5mm pitch and a 3A current rating. Constructed from PBT and Polybutylene in black, this waterproof connector utilizes copper alloy contacts with tin plating. Designed for free-hanging mounting, it supports wire gauges from 22AWG to 16AWG and operates within a temperature range of -40°C to 125°C.
Current Rating3A
MountingFree Hanging
Quick Jump:
Technical Specifications
JAE Electronics MX23A12SF1 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Features | WATERPROOF |
| Gender | Female |
| Length | 29.1mm |
| Material | PBT, Polybutylene |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Outside Diameter | 2.2mm |
| Package Quantity | 400 |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MX23A |
| Termination | Crimp |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
JAE Electronics MX23A12SF1 Datasheet
Download the complete datasheet for JAE Electronics MX23A12SF1 to view detailed technical specifications.
