Surface mountable, straight orientation RJ11 connector featuring 8 positions and 8 contacts. Constructed with a resin body and copper alloy contacts plated with gold, this connector offers a 10V voltage rating and 500mA current rating. Designed for 10,000 mating cycles, it operates within a temperature range of -25°C to 85°C and boasts UL94 V-0 flammability. Packaged in tape and reel for efficient SMT processing.
PackageSMD/SMT
Voltage Rating10V
Current Rating500mA
MountingSurface Mount, Through Hole, PCB
Quick Jump:
Technical Specifications
JAE Electronics ST1W008S4ER1500 technical specifications.
General
| Approvals | UL |
| Body Material | Resin |
| Package/Case | SMD/SMT |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Flammability Rating | UL94 V-0 |
| Lead Pitch | 1.1mm |
| Material | Resin |
| Mating Cycles | 10000 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount, Through Hole, PCB |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Orientation | Straight |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ST1 |
| Termination | SMD/SMT |
| Voltage Rating | 10V |
| Width | 14.15mm |
Compliance
| RoHS | Compliant |
Datasheet
JAE Electronics ST1W008S4ER1500 Datasheet
Download the complete datasheet for JAE Electronics ST1W008S4ER1500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

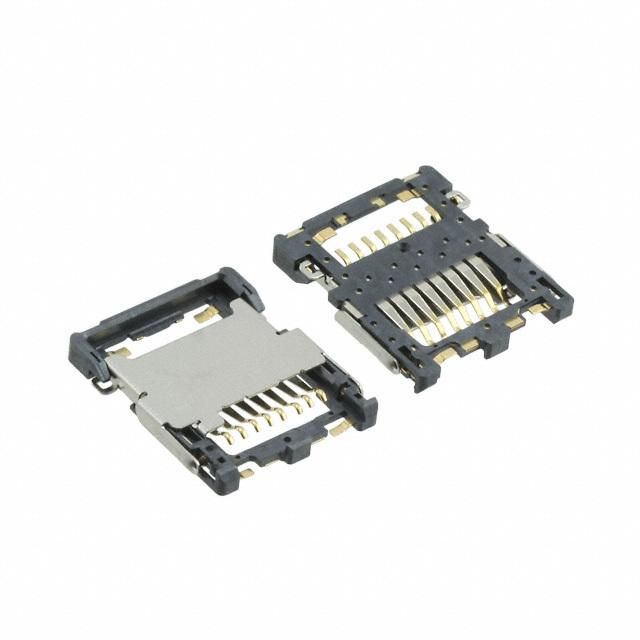

Product Images
