Multilayer Ceramic Capacitor (MLCC) with 10nF capacitance and 500V DC rated voltage. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) surface mount package. Operates from -55°C to 125°C, with dimensions of 2.03mm length, 1.27mm depth, and 0.05inch width. Packaged in tape and reel, this RoHS compliant component is suitable for demanding applications.
Package0805
Voltage500V
Capacitance10nF
Voltage Rating500V
Quick Jump:
Technical Specifications
Johanson 501R15W103KV4E technical specifications.
General
Capacitance
10nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Depth
1.27mm
Dielectric
X7R
Length
2.03mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
0.055inch
Tolerance
10%
Voltage
500V
Voltage Rating
500V
DC Rated Voltage
500V
Width
0.05inch
Compliance
RoHS
Compliant
Datasheet
Johanson 501R15W103KV4E Datasheet
Download the complete datasheet for Johanson 501R15W103KV4E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

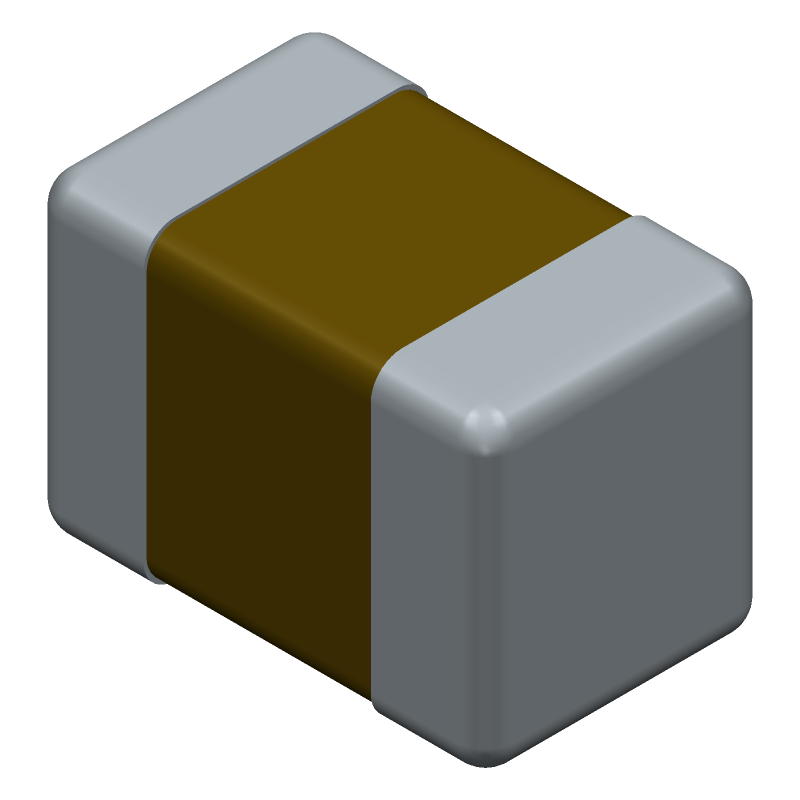

Product Images
