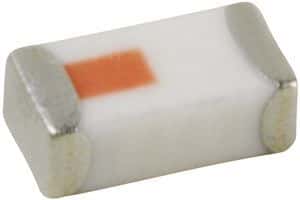

This Johanson chip antenna operates at a frequency of 5.9GHz with a bandwidth of 1GHz and an impedance of 50R. It is packaged in a ceramic case and is designed for surface mount applications. The antenna has a height of 0.051inch and a length of 3.2mm, with a width of 1.6mm. It can dissipate a maximum power of 500mW and has a return loss of -9.5dB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Johanson 5400AT18A1000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 1GHz |
| Package/Case | Ceramic |
| Frequency | 5.4GHz |
| Gain | -2.5dB |
| Height | 0.051inch |
| Impedance | 50R |
| Length | 3.2mm |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of Bands | 1 |
| Operating Frequency | 5900MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Return Loss | -9.5dB |
| Termination | Solder |
| Width | 1.6mm |
| RoHS | Compliant |
