Johnson Electric Saia
V4NST9Y1UL
Microswitch 250 Vac 5 A 1 x On/(On) Saia V4NST9Y1UL IP67 momentary 1 pc(s)
Quick Jump:
Technical Specifications
Johnson Electric Saia V4NST9Y1UL technical specifications.
General
Contact Material
Silver
Contact Type
1 change-over
Height
10.3mm
Length
6.4mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Ratings
IP67
Width
20mm
Compliance
RoHS
Not Compliant
Datasheet
Johnson Electric Saia V4NST9Y1UL Datasheet
Download the complete datasheet for Johnson Electric Saia V4NST9Y1UL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

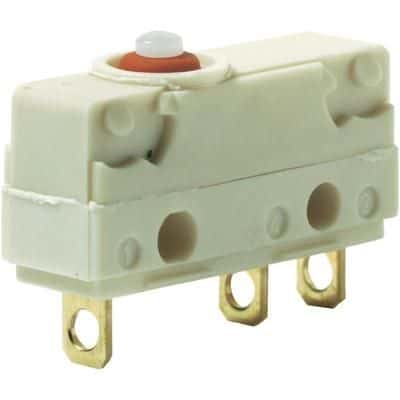

Product Images
