This 5-position shrouded header features a 2.5mm pitch and a voltage rating of 250V. It is designed for through hole mounting and has a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. The header is made of bronze with a tin contact finish and has a natural insulation color. It meets the UL94 V-0 flammability rating and is lead-free.
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
JST 05JQ-BT technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze, Tin |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Mated Stacking Heights | 11.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Series | JQ |
| Termination | Press-Fit |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
JST 05JQ-BT Datasheet
Download the complete datasheet for JST 05JQ-BT to view detailed technical specifications.
No datasheet is available for this part.

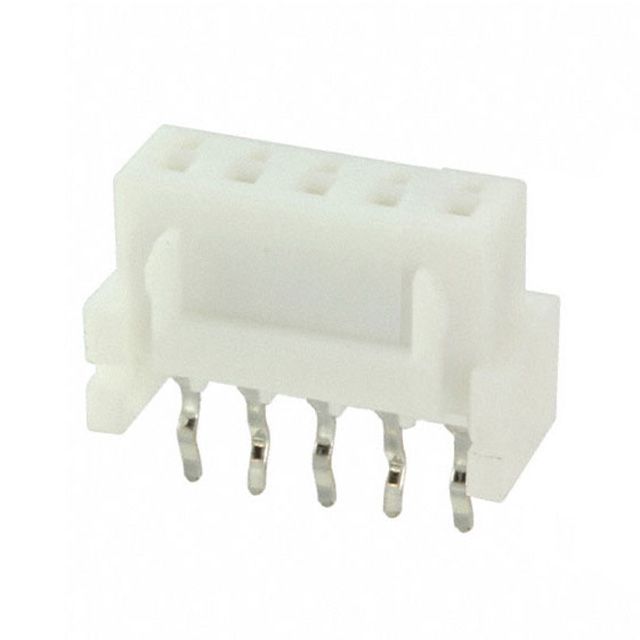

Product Images
