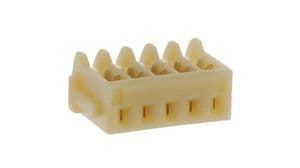

5-position, 1-row, 1mm pitch wire-to-board connector with IDC termination for discrete wire up to 30AWG. Features female socket contacts with tin plating and a natural colored housing. Designed for top entry cable mounting and free-hanging applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST 05SR-3S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Lead Free | Lead Free |
| Mount | Free Hanging |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 1mm |
| Series | SR |
| Termination | IDC |
| Wire/Cable Gauge | 30AWG |
| Wire/Cable Type | Discrete |
| RoHS | Compliant |
