2-position, 1-row shrouded header with a 2mm pitch, designed for board-to-board applications. Features male pin contacts made from copper alloy with a tin mating finish, offering a kinked pin termination for through-hole mounting. This PBT insulated component boasts a 250V voltage rating and a UL94 V-0 flammability rating, with a mated stacking height of 14.9mm. The housing is white, and the insulation is natural.
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
JST B02B-PASK(LF)(SN) technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Housing Color | White |
| Insulation Color | Natural |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Mated Stacking Heights | 14.9mm |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 2mm |
| Series | PA |
| Termination | Kinked Pin |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
JST B02B-PASK(LF)(SN) Datasheet
Download the complete datasheet for JST B02B-PASK(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

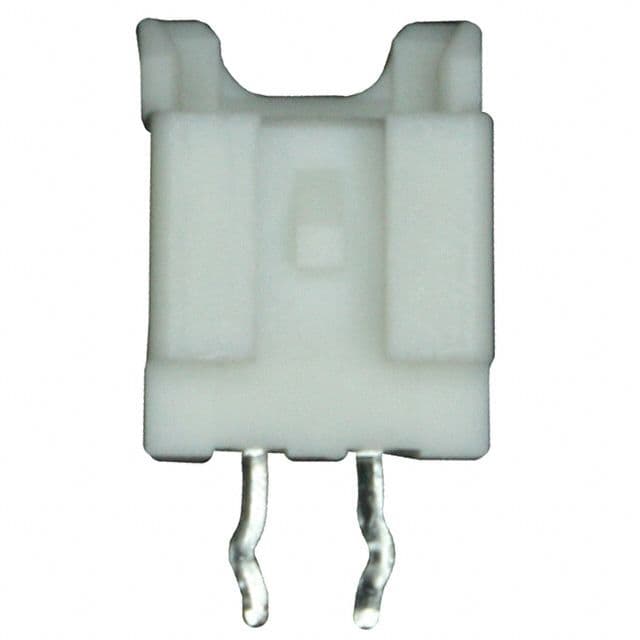

Product Images
