10-position, 1-row shrouded header for board-to-board applications. Features straight, through-hole mounting with a 2mm pitch and solder termination. Male pin contacts made of copper alloy with tin plating offer a 3A current rating and 250V voltage rating. Natural colored housing is made of white material and is lead-free.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST B10B-PASK-1(LF)(SN) technical specifications.
General
| Color | Natural |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.126inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Housing Color | White |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 0.079inch |
| Series | PA |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
JST B10B-PASK-1(LF)(SN) Datasheet
Download the complete datasheet for JST B10B-PASK-1(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

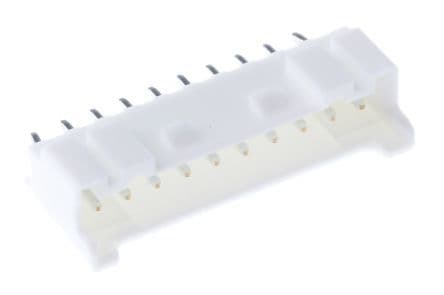

Product Images
