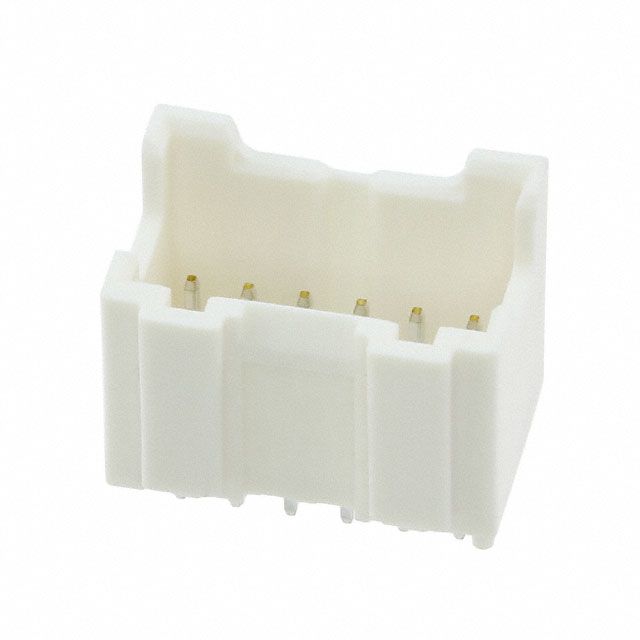

This 12-position, 2-row shrouded header features a current rating of 3A and a voltage rating of 250V. It has 12 male pins and is designed for through-hole mounting. The header is constructed with copper alloy contacts that are plated with tin, and it is lead-free. It is available in a bulk packaging quantity of 300 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST B12B-PADSS-1F(LF)(SN) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Bulk |
| Pitch | 0.079inch |
| Row Spacing | 0.079inch |
| Series | PAD |
| Termination | Solder |
| Voltage Rating | 250V |
| RoHS | Compliant |
