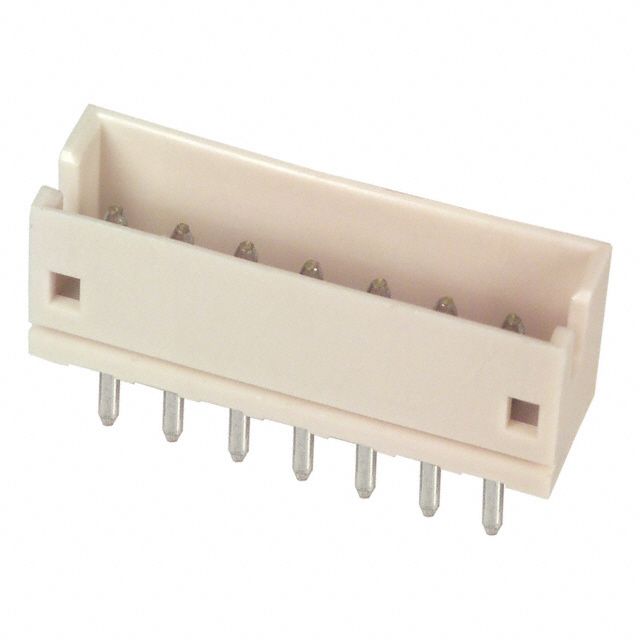

Shrouded header with 7 positions and straight, through-hole mounting. Features a 1.5mm pitch and a 1A current rating. Contact finish is tin, with brass and copper contact material and plating. Insulation material is nylon, with a flammability rating of UL94 V-0. Operating temperature range is -25°C to 85°C, with a maximum voltage rating of 50V AC.
Voltage Rating50V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST B7B-ZR(LF)(SN) technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass, Tin |
| Contact Plating | Copper, Tin |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 3.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Beige |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 12mm |
| Mated Stacking Heights | 5.6mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Through Hole |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 1.5mm |
| Series | ZH |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
JST B7B-ZR(LF)(SN) Datasheet
Download the complete datasheet for JST B7B-ZR(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
