7-position, right-angle wire-to-board header with a 3.96mm pitch. Features male pin contacts made of brass with tin plating over copper and tin mating finish. Rated for 10A current and 250V AC, with an operating temperature range of -25°C to 85°C. The white nylon housing has a UL94 V-0 flammability rating and the component mounts via through-hole termination.
Voltage Rating250V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST B7PS-VH(LF)(SN) technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass, Tin |
| Contact Plating | Copper, Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 10A |
| Depth | 14.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | White |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 27.66mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Series | VH |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
JST B7PS-VH(LF)(SN) Datasheet
Download the complete datasheet for JST B7PS-VH(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

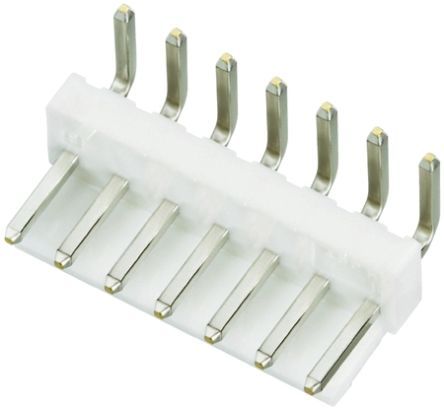

Product Images
