6-position, 1-row wire housing for 2.5mm pitch cable mounting. Features straight, receptacle gender with female socket contact type. Rated for 3A maximum current and 250V AC maximum voltage, operating between -25°C and 85°C. Dimensions include 17mm length, 3.8mm width, and 7.1mm depth. Natural colored housing with white appearance, designed for crimp termination.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
JST EHR-6 technical specifications.
General
| Color | Natural |
| Contact Type | Female Socket |
| Depth | 7.1mm |
| Gender | Receptacle |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 17mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Reach SVHC Compliant | No |
| Series | EH |
| Termination | Crimp |
| Width | 3.8mm |
Compliance
| RoHS | Compliant |
Datasheet
JST EHR-6 Datasheet
Download the complete datasheet for JST EHR-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

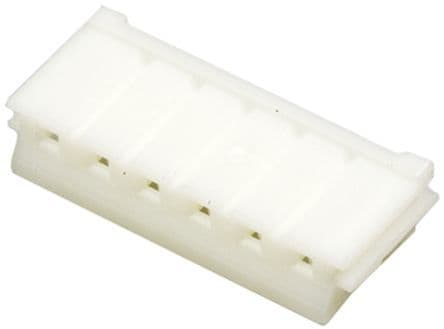

Product Images
