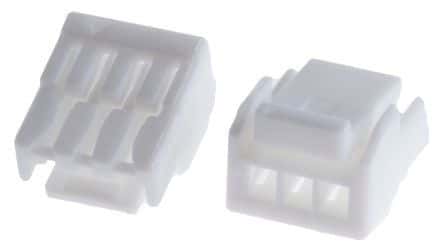

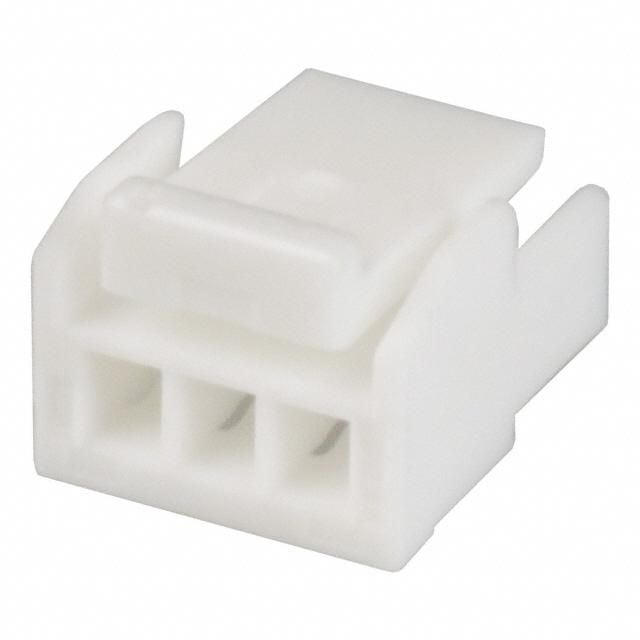

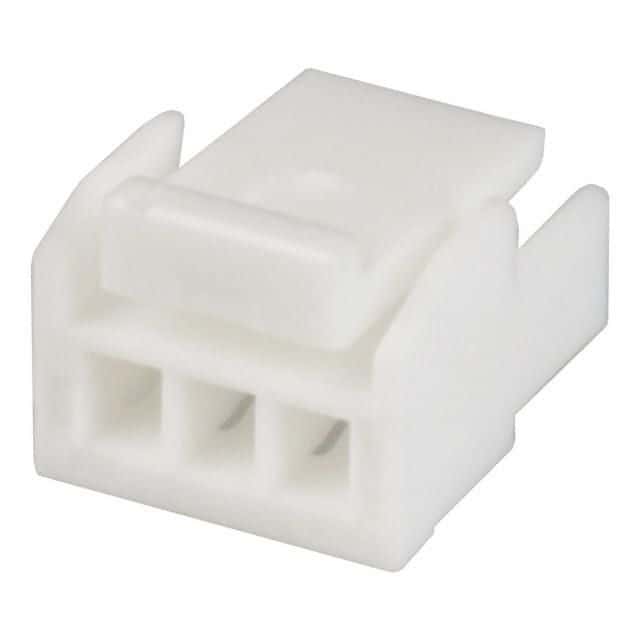

3-position, 1-row wire housing with a 1.25mm pitch, designed for cable mounting. Features female socket crimp termination with bronze contacts plated in tin, supporting a 1A current rating and 50V AC voltage rating. This natural colored, lead-free receptacle housing operates between -25°C and 85°C, with dimensions of 5mm length, 4.15mm width, and 5.7mm depth, suitable for 26AWG wire.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST GHR-03V-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Depth | 5.7mm |
| Gender | Receptacle |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 1.25mm |
| Reach SVHC Compliant | No |
| Series | GH |
| Termination | Crimp |
| Voltage Rating (AC) | 50V |
| Width | 4.15mm |
| Wire/Cable Gauge | 26AWG |
| RoHS | Compliant |
