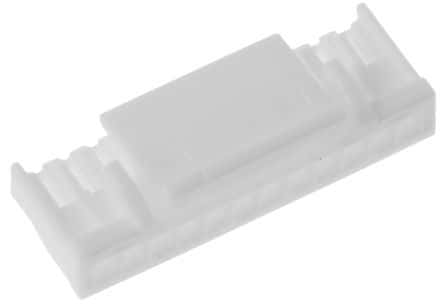

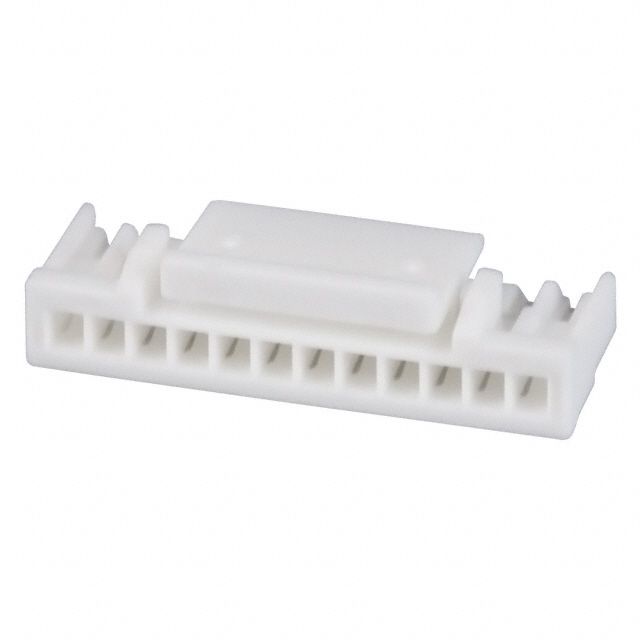

12-position, 1-row wire housing with a 1.25mm pitch, designed for crimp termination. Features female socket contacts made of tin-plated bronze, supporting a 1A current rating and 50V AC voltage rating. This natural colored receptacle housing measures 16.25mm in length, 4.15mm in width, and 5.7mm in depth, operating within a -25°C to 85°C temperature range. Suitable for free-hanging, cable mounting applications with wire gauges up to 26AWG.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST GHR-12V-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Depth | 5.7mm |
| Gender | Receptacle |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 16.25mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 1.25mm |
| Reach SVHC Compliant | No |
| Series | GH |
| Termination | Crimp |
| Voltage Rating (AC) | 50V |
| Width | 4.15mm |
| Wire/Cable Gauge | 26AWG |
| RoHS | Compliant |
