10-position, 2mm pitch wire housing for cable mounting. Features straight, female socket contacts with tin plating over bronze. Rated for 2A current and 100V working voltage, with a temperature range of -25°C to 85°C. Constructed from UL94 V-0 rated Nylon in a white housing color, accepting 24-30AWG wire.
Voltage Rating100V
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
JST PHR-10 technical specifications.
General
| Color | Natural, White |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2A |
| Depth | 6.85mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 6.4mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 21.8mm |
| Material | Nylon |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 100V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| Series | PH |
| Termination | Crimp |
| Width | 4.5mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 24AWG |
| Working Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
JST PHR-10 Datasheet
Download the complete datasheet for JST PHR-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

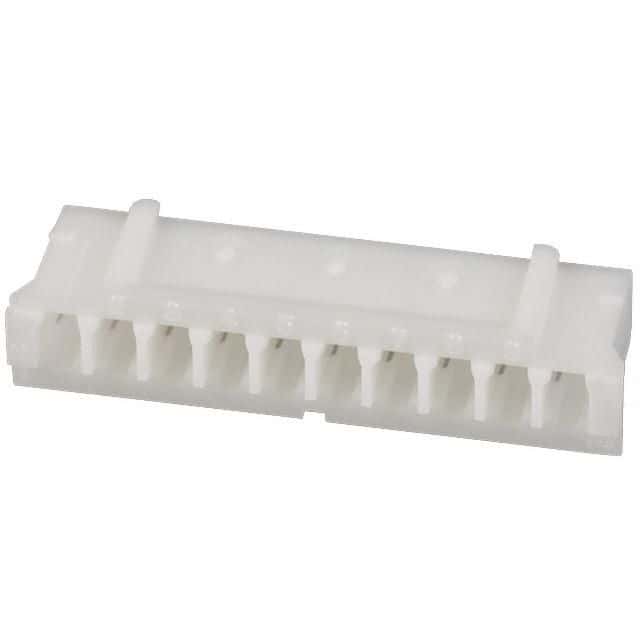

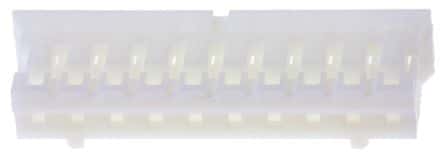

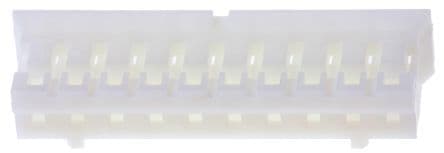

Product Images
