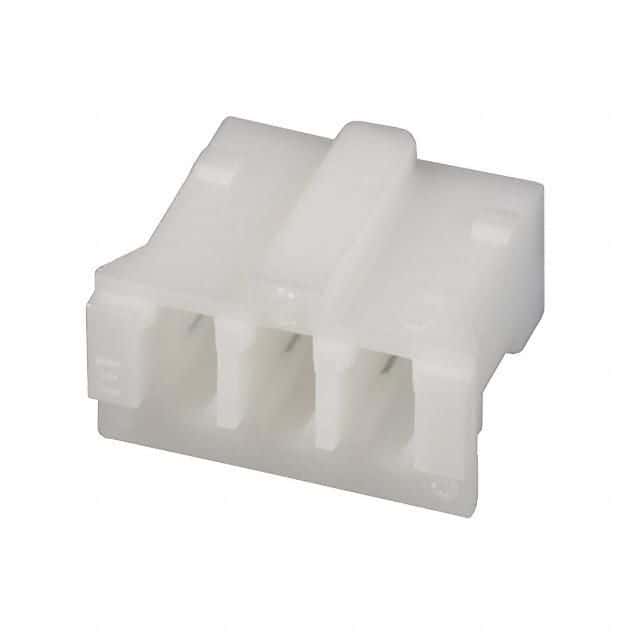

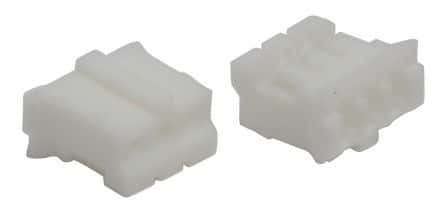

Board connector featuring 3 contacts in a single row, designed for crimp termination. This female socket connector offers a 2mm pitch and a straight orientation, suitable for free-hanging or cable mounting. It boasts a 2A current rating and a 100V working voltage, with a maximum operating temperature of 85°C. Constructed from UL94 V-0 rated nylon, it utilizes tin-plated bronze contacts and is lead-free.
Voltage Rating100V
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
JST PHR-3 technical specifications.
General
| Color | Natural, White |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2A |
| Depth | 6.85mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 6.4mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Material | Nylon |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 100V |
| Max Voltage Rating (DC) | 100V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| Series | PH |
| Termination | Crimp |
| Width | 4.5mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 24AWG |
| Working Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
JST PHR-3 Datasheet
Download the complete datasheet for JST PHR-3 to view detailed technical specifications.
