7-position, 1-row, 2mm pitch wire housing for straight, cable mount applications. Features female socket contacts with tin-plated bronze construction, rated for 2A current and 100V DC. Constructed from UL94 V-0 rated Nylon in a natural/white color, this housing operates from -25°C to 85°C. Dimensions are 15.8mm length, 6.85mm depth, 6.4mm height, and 4.5mm width.
Voltage Rating100V
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
JST PHR-7 technical specifications.
General
| Color | Natural, White |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2A |
| Depth | 6.85mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 6.4mm |
| Lead Free | Lead Free |
| Length | 15.8mm |
| Material | Nylon |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| Series | PH |
| Termination | Crimp |
| DC Rated Voltage | 100V |
| Width | 4.5mm |
| Working Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
JST PHR-7 Datasheet
Download the complete datasheet for JST PHR-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

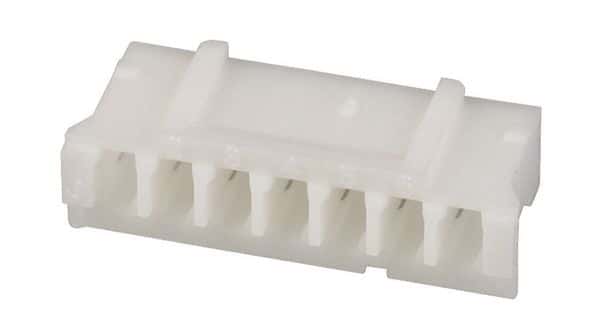

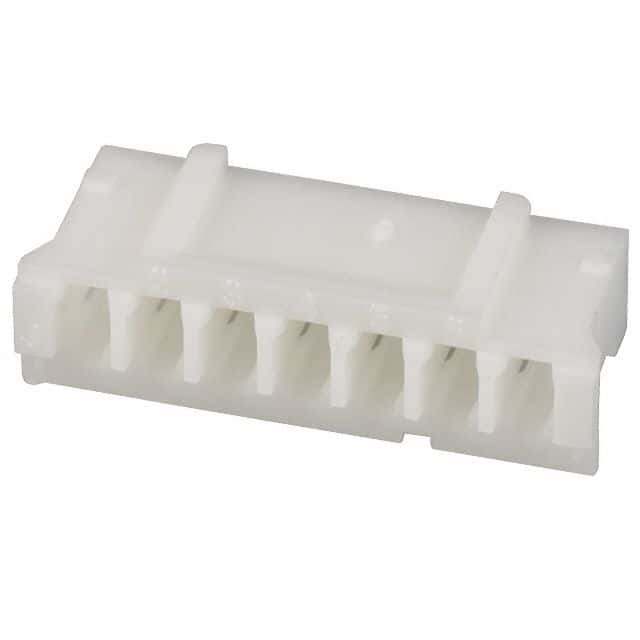

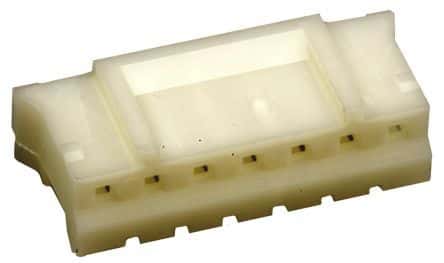

Product Images
