8-position, 1-row, 2mm pitch wire housing with straight orientation. Features female socket crimp termination, a 2A current rating, and a 100V working voltage. Constructed from white Nylon material with UL94 V-0 flammability rating. Suitable for cable mounting with a maximum wire gauge of 30AWG and minimum of 24AWG. Operating temperature range from -25°C to 85°C.
Voltage Rating100V
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
JST PHR-8 technical specifications.
General
Color
Natural, White
Contact Material
Bronze, Tin
Contact Plating
Tin
Contact Type
Female Socket
Current Rating
2A
Depth
6.85mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
6.4mm
Housing Color
White
Lead Free
Lead Free
Length
17.8mm
Material
Nylon
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
100V
Mount
Free Hanging, Cable
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
2mm
Reach SVHC Compliant
No
Series
PH
Termination
Crimp
Width
4.5mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
24AWG
Working Voltage
100V
Compliance
RoHS
Compliant
Datasheet
JST PHR-8 Datasheet
Download the complete datasheet for JST PHR-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

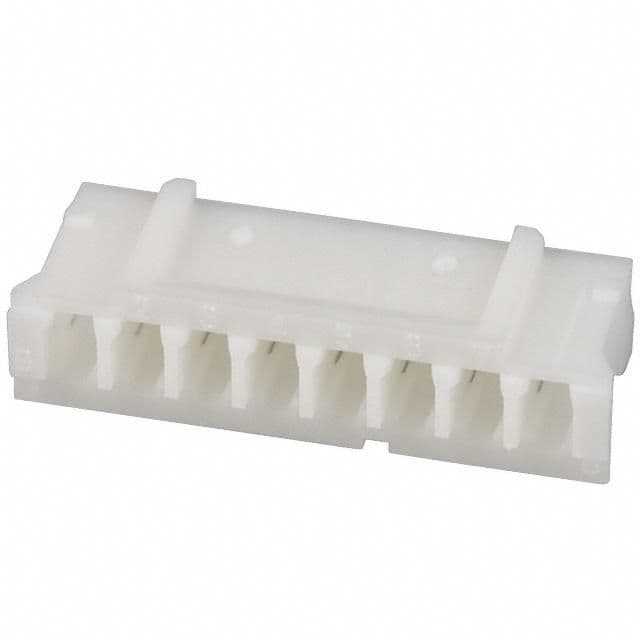

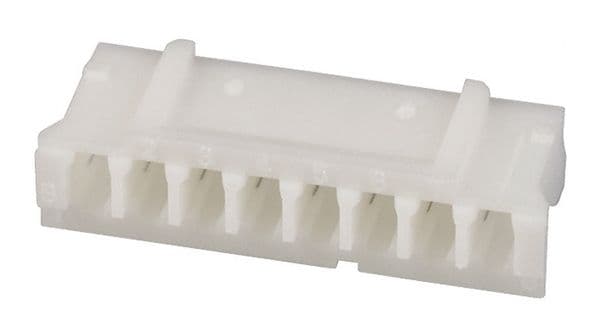

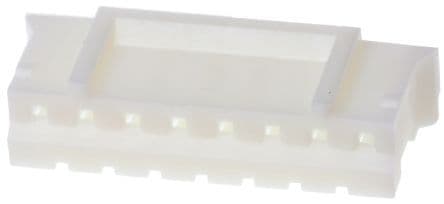

Product Images
