1.5mm pitch shrouded header with 10 positions and 1 row. Features a right-angle, through-hole mounting orientation with a solder termination. Offers a 1A current rating and 50V voltage rating. Constructed with brass, tin contacts and a nylon housing, achieving a UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST S10B-ZR(LF)(SN) technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass, Tin |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 7.2mm |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 16.5mm |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 1.5mm |
| Series | ZH |
| Termination | Solder |
| Voltage Rating | 50V |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
JST S10B-ZR(LF)(SN) Datasheet
Download the complete datasheet for JST S10B-ZR(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

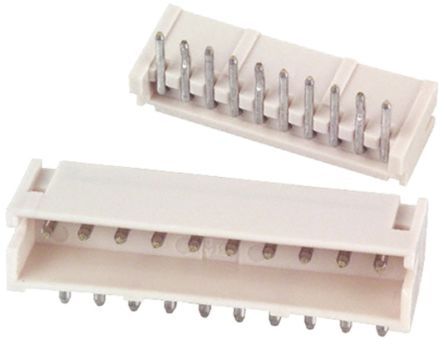

Product Images
