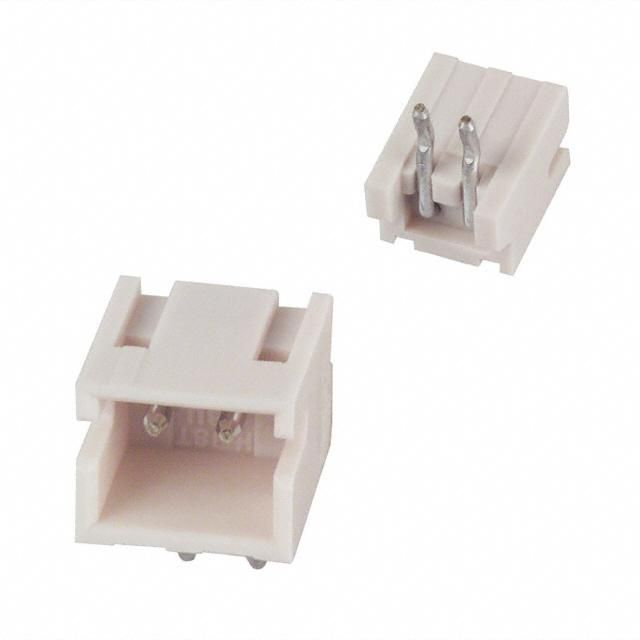

Right-angle shrouded header with 2 positions and a 1.5mm pitch. Features tin-plated brass and copper contacts with a circular male pin shape, rated for 1A current and 50V AC/DC. Constructed with natural colored nylon insulation and a beige housing, this component offers a solder termination for through-hole mounting. Operating temperature range is -25°C to 85°C, with a UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST S2B-ZR(LF)(SN) technical specifications.
General
Body Plating
Tin
Color
White
Contact Finish - Mating
TIN
Contact Material
Brass, Tin, Copper
Contact Plating
Tin, Copper
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
1A
Depth
6mm
Flammability Rating
UL94 V-0
Gender
Male
Height
7.2mm
Housing Color
Beige
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Lead Pitch
1.5mm
Length
4.5mm
Material
Nylon
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
50V
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Right Angle
Packaging
Bulk
Panel Thickness
3.5mm
Pitch
1.5mm
Reach SVHC Compliant
No
Series
ZH
Termination
Solder
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
JST S2B-ZR(LF)(SN) Datasheet
Download the complete datasheet for JST S2B-ZR(LF)(SN) to view detailed technical specifications.
