4-position, 1-row right-angle male header connector with 2mm pitch. Features brass, tin, and bronze contacts with tin plating, rated for 2A current and 100V voltage. Through-hole mounting with solder termination, operating temperature range of -25°C to 85°C. Housing is natural colored, UL94 V-0 flammability rated, and lead-free.
Voltage Rating100V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST S4B-PH-K-S(LF)(SN) technical specifications.
General
| Color | Natural, White |
| Contact Material | Brass, Tin, Bronze |
| Contact Mating Length | 0.13inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 9.4mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Length | 9.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| Series | PH |
| Termination | Solder |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| Weight | 28.349523g |
| Width | 4.5mm |
| Working Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
JST S4B-PH-K-S(LF)(SN) Datasheet
Download the complete datasheet for JST S4B-PH-K-S(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

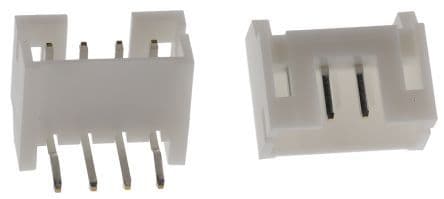

Product Images
