Right-angle shrouded header with 5 positions and 1.5mm pitch. Features male pin contacts with brass, tin, copper, and tin plating, offering a 1A current rating. Constructed with beige nylon insulation and a natural insulation color, this component boasts a UL94 V-0 flammability rating and operates within a -25°C to 85°C temperature range. Designed for through-hole mounting with solder termination, it supports up to 50V AC.
Voltage Rating50V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST S5B-ZR(LF)(SN) technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Brass, Tin
Contact Plating
Copper, Tin
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
1A
Depth
6mm
Flammability Rating
UL94 V-0
Gender
Male
Height
7.2mm
Housing Color
Beige
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Length
9mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
50V
Mount
Through Hole
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Right Angle
Packaging
Bulk
Pitch
1.5mm
Series
ZH
Termination
Solder
Voltage Rating
50V
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
JST S5B-ZR(LF)(SN) Datasheet
Download the complete datasheet for JST S5B-ZR(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

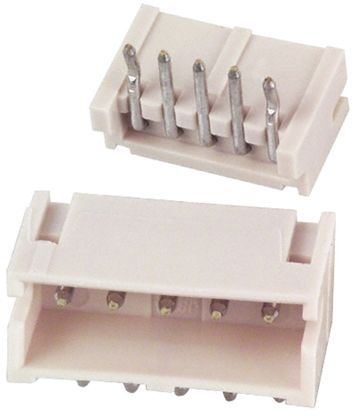

Product Images
