Right-angle male header connector featuring 6 contacts in a single row with a 2mm pitch. This through-hole mount component offers a 2A current rating and 100V voltage rating, with brass contacts plated in tin for reliable termination. Constructed from natural colored nylon insulation and polyamide housing, it boasts a UL94 V-0 flammability rating and operates within a -25°C to 85°C temperature range.
Voltage Rating100V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST S6B-PH-K-S(LF)(SN) technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass, Tin |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 9.4mm |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 13.9mm |
| Material | Polyamide |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| Series | PH |
| Termination | Solder |
| Voltage Rating | 100V |
| Weight | 28.349523g |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
JST S6B-PH-K-S(LF)(SN) Datasheet
Download the complete datasheet for JST S6B-PH-K-S(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

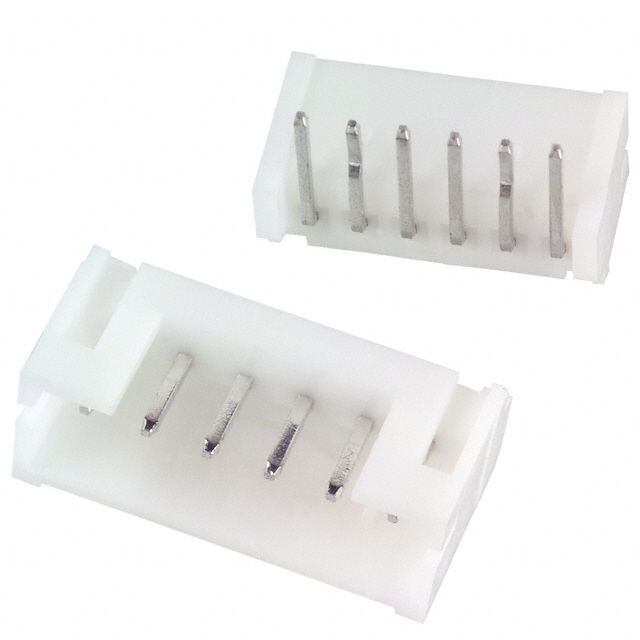

Product Images
