4-position, 1mm pitch wire housing receptacle for crimp termination. Features a straight, cable mount orientation with a 1A current rating and 50V voltage rating. Constructed from PBT material with a UL94 V-0 flammability rating, operating between -25°C and 85°C. This natural/white colored housing offers a compact design with dimensions of 7mm (L) x 2.8mm (W) x 5mm (D).
Voltage Rating50V
Current Rating1A
MountingFree Hanging
Quick Jump:
Technical Specifications
JST SHR-04V-S-B technical specifications.
General
Body Material
PBT
Color
Natural, White
Contact Type
Female Socket
Current Rating
1A
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Lead Free
Lead Free
Lead Pitch
1mm
Length
7mm
Material
PBT
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
1mm
Reach SVHC Compliant
No
Series
SH
Termination
Crimp
Voltage Rating
50V
Voltage Rating (AC)
50V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
JST SHR-04V-S-B Datasheet
Download the complete datasheet for JST SHR-04V-S-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

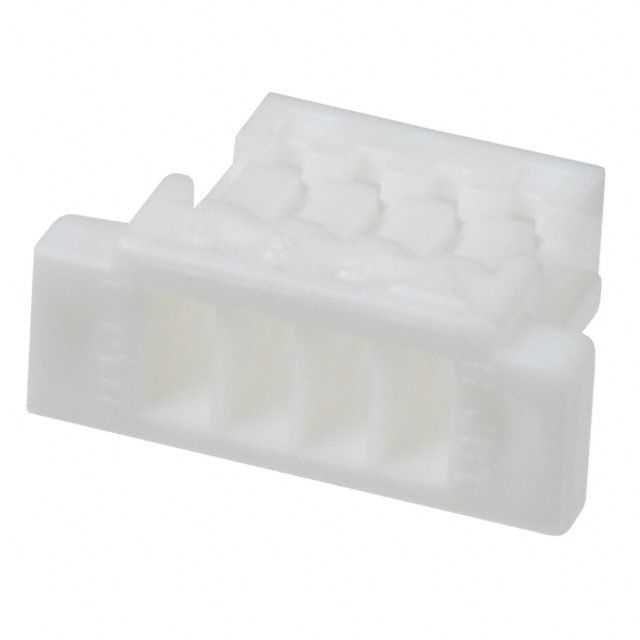

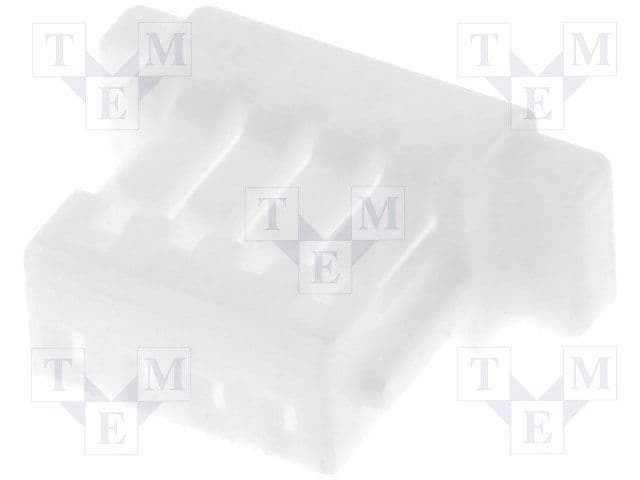

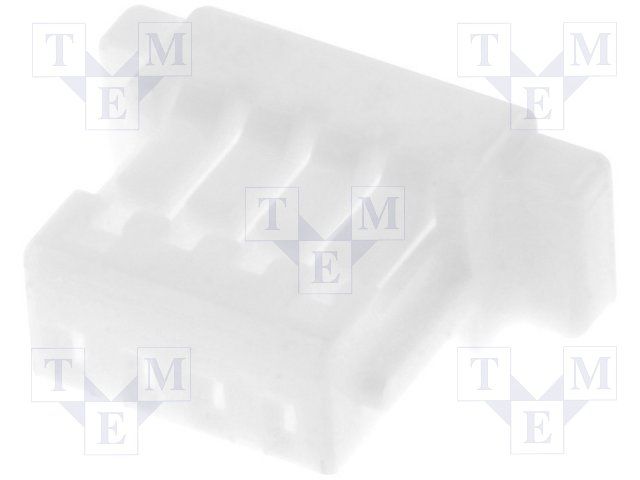

Product Images
